Description:

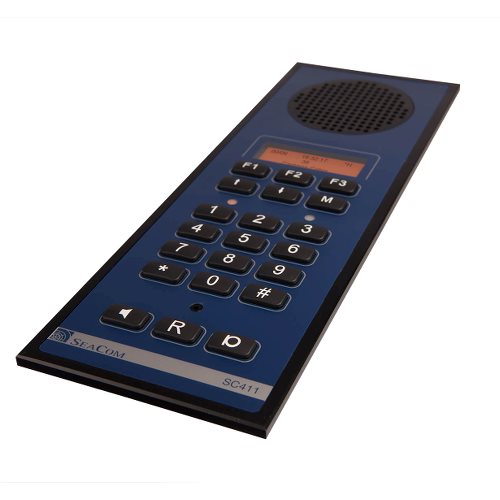

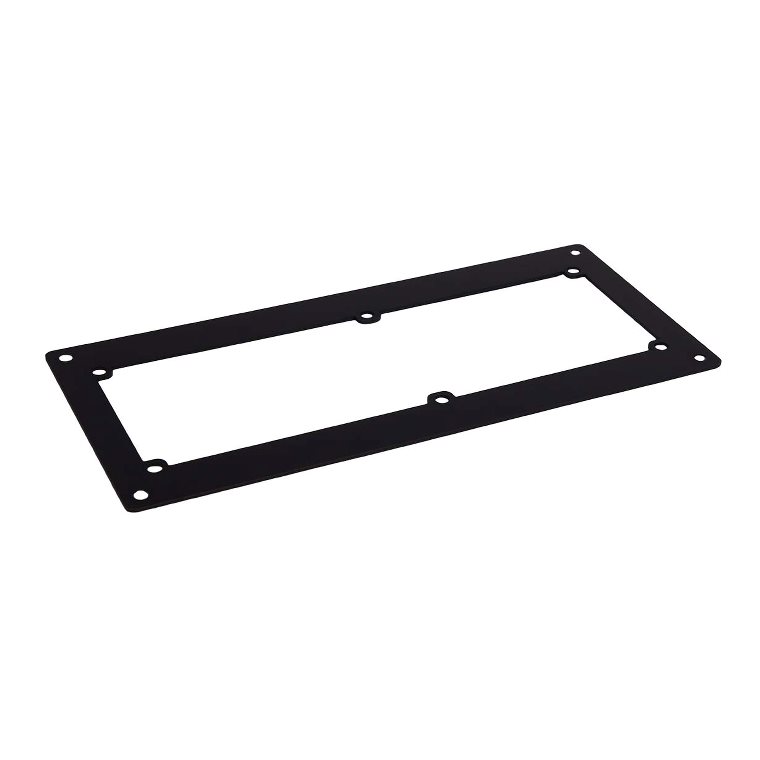

The SC411 telephone is created for use on the bridge consoles. With its nice screw less flush mount aluminum frame and its red backlight it will fit nicely into any bridge design.
The high quality build in speaker allows for hands free operation, also in engine control rooms, and if noise gets really high, an optional external speaker can be driven by the build in 10W speaker amplifier creating outstanding volume levels in hands free.
The telephone is meant to be used in hands free, but will also connect a handset for more private conversations.
The SC411 also allows for connecting an external microphone with a foot switch, so the telephone can be answered from a single position away from the station.
The red backlight can be manually dimmed, or the automatic light sensing mechanism can do it automatically.
3 speed dial button can be programmed, so - for example the engine control room - can be called by a single button push.
A relay contact is provided which can be configured to activate on incoming calls or be used for muting a close by PA speaker just to mention a couple of examples.
The SC411 connects by far most analogue 2 wire PABX systems and can also be connected to FXS ports of IP telephone systems.
Specifications:
- Screw less flush mount
- Loud speaking hands-free
- Auto dimmed red backlight

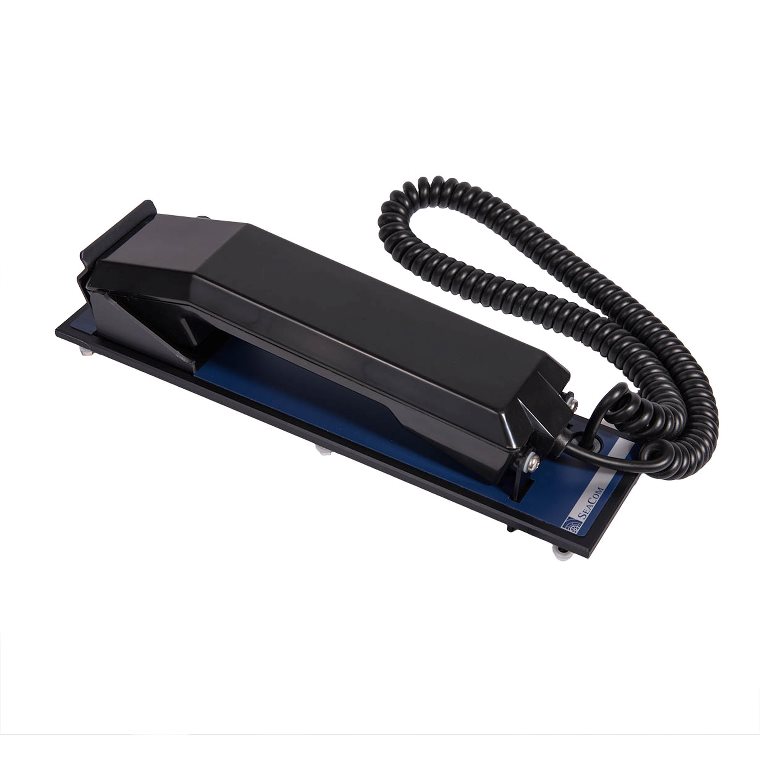

- Connects handset,
- Connects headset
- Connects 10W external speaker
- Connects external microphone and footswitch
- Busy tone disconnect
- 4 ringing sounds
- Voice activated hook off
- Power 18-32V DC 1A
- Standard analog telephone line 600ohm
- DTMF & LD dialing
- Ringing relay contacts 24V DC 1A.
- -25 to 70 oC operation
- IP20
- DNV-GL type approved
- EN60945 and IACS E10 compliant
Accessories
