Description:

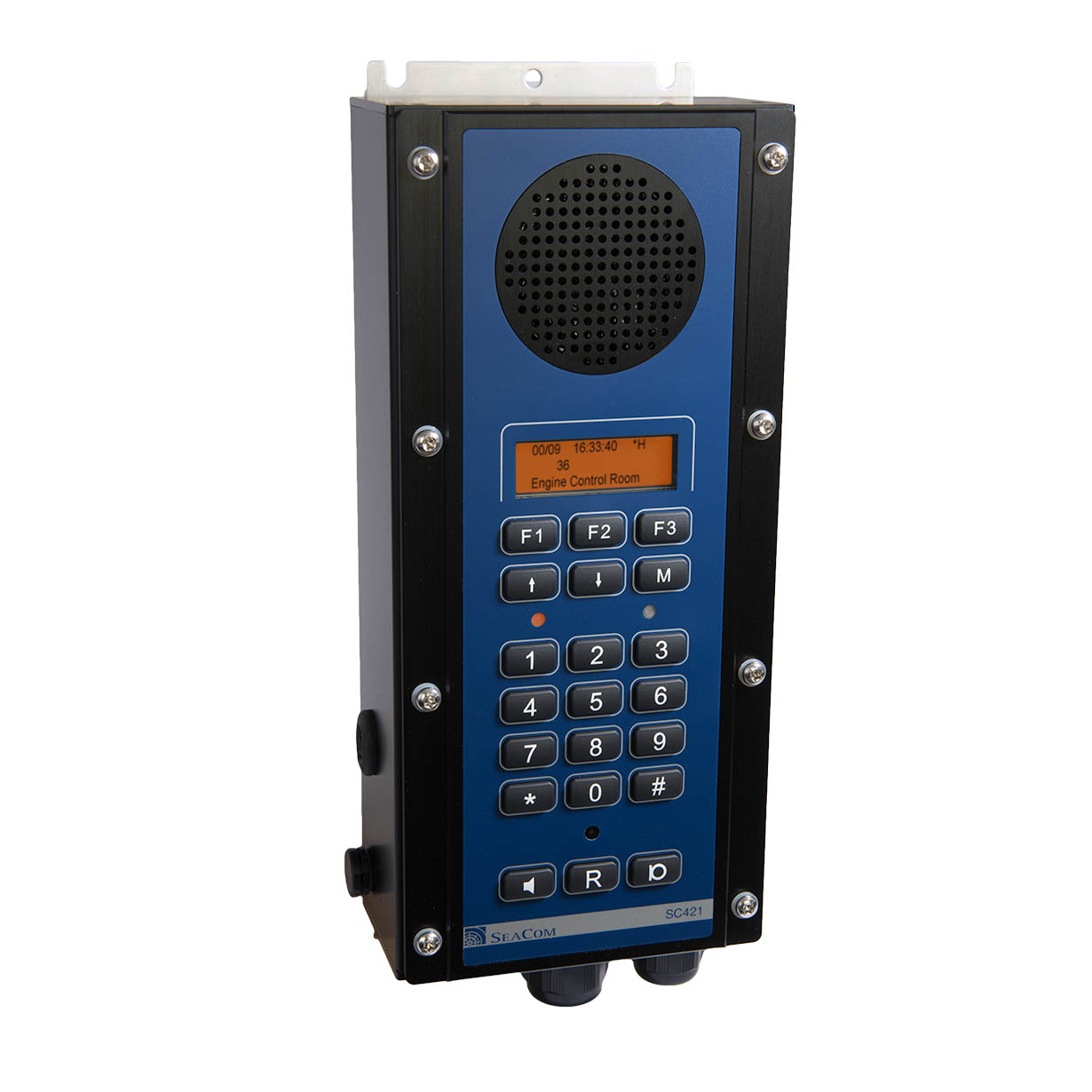

The SC421 telephone and intercom station is created for use in engine spaces and on deck where hands-free communication is needed. The station can be used completely stand alone as a hands-free intercom station, but it can also be used with an optional headset, handset or 10W horn speaker.
The full set of features will be revealed when connected to a SeaCom communication system, but the station can be used with most PABX systems having analogue telephone lines or IP-telephone systems with an FXS port. As such it can be used as a water tight robust hands-free telephone, and when the auto-answer function is enabled, it will add talk-back / intercom style of communication to such PABX systems.

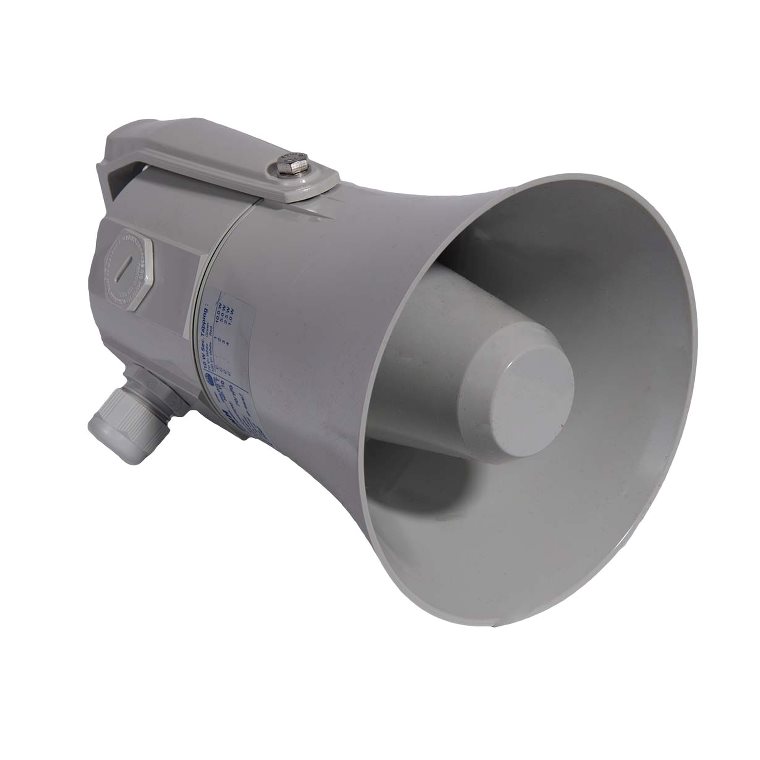

For noisy areas or for outdoor use where a larger area is to be covered with reliable voice communication, the station provides a 10W horn-speaker driver amplifier. The reliable hands-free operation can be expected even with this external speaker.

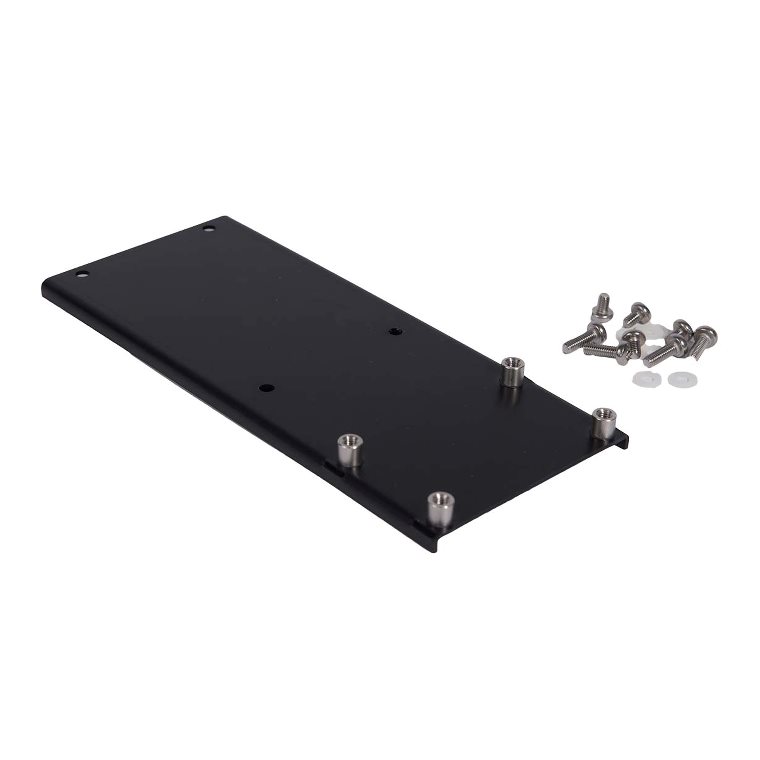

The station comes completely enclosed in a salt water resistant anodized aluminum enclosure. It is mounted on a bulkhead using the two stainless steel mounting brackets. The acoustic open front cover door allows for the use of the station in exposed areas (IP65).
Specifications:
- Bulkhead mount
- Loud speaking hands-free

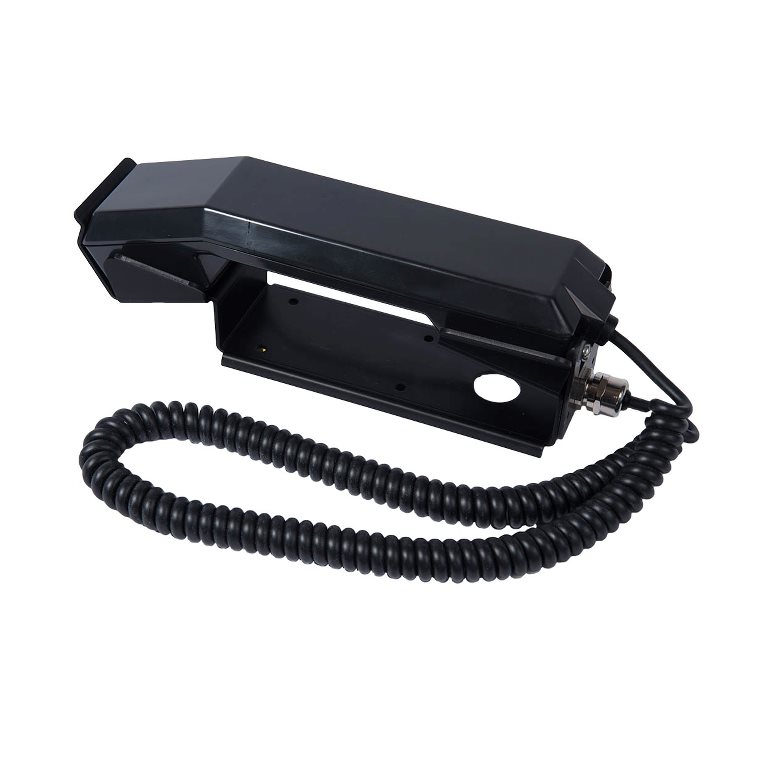

- Connects handset,
- Connects headset
- Connects 10W external speaker
- Auto dimmed red backlight
- Busy tone disconnect
- 4 ringing sounds
- Power 18-32V DC 1A
- Voice activated hook off
- Line voltage 20-50V DC
ringing 40-90Vrms @20-50Hz - Standard analog telephone line 600ohm
- DTMF & LD dialing
- Ringing relay contacts 24V DC 1A.
- -25 to 70 oC operation
- DNV-GL type approved
- EN60945 and IACS E10 compliant
Accessories
