Description:

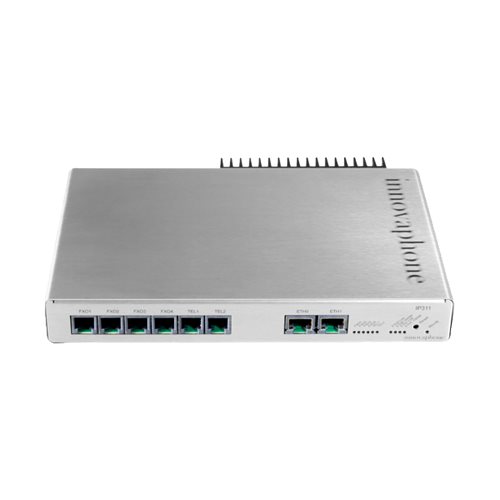

The IP311 VoIP gateway is the central computer in a VoIP telephone system. It is powered by PoE via the Ethernet connection. In addition to beeing the "central processor" in a VoIP telephone system with unlimited number of extensions, it implements 4 analogue trunk lines (FXO) and 2 analogue extension lines (FXS).
Specifications:
- VoIP PBX
- Unlimited number of extensions
- Powered by PoE over Ethernet according to IEEE 802.3af, Class 3
- 210 x 134 x 32 mm
- One height unit (HU) for 19” systems
- Weight: 840 g
- Power max 2,5W
- Operating 0-40 dgs C
- 6 voice channels
Interfaces
- 4 x a/b interface FXO: connection of analogue trunk lines, RJ-11 (modular Jack 6P2C)
- 2 x a/b interface FXS: connection of analogue extensions, RJ-11 (modular Jack 6P2C)
- 2 x Gigabit Ethernet: 1000-BASE-T (auto negotiation), RJ-45 (modular Jack 8P8C)
Voice Codecs:
- G.711 A-law / µ-law
- G.722
- G.723.1 (5.3)
- G.729A
- Opus-NB incl. VAD (Voice Activity Detection), CNG (Comfort Noise Generation)
- Dynamic Jitter Buffering
- Echo Compensation according to G.168
